    336HP Sinotruck Howo 20m3 Used Water Tank Truck

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : ZZ1257N4347A1
    Certification : CCC, ISO, CE
    Price : $14000/unit-$18000/unit
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 30units per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

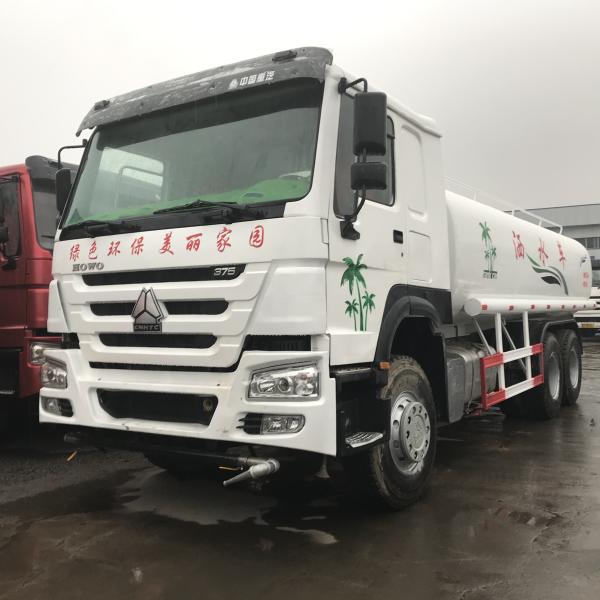

    336HP Sinotruck Howo 20m3 Used Water Tank Truck

    Water Spray Truck 336hp Sinotruck Howo Used 20m3 Water Tank Truck


    Water Tank Truck Description:


    SINOTRUK HOWO Water tank truck is widely used in city landscaping, road or mining site dusty restrain and so on.


    Self suction height: less than or equal to 7m, sprinkler width: is equal to or more than 20m, maximum range:

    greater than or equal to 28m; adjusting the pillars, the range is more than or equal to 28m;



    Also can be adjusted into a mist, a range of equal to or more than 5m. Before the spray sprinkle, is arranged

    in front of the duck shaped nozzle or round blunt mouth, mounted behind the open sprinkler nozzle or shower

    nozzle of cylinder, at the back of the work platform, equipped with water cannons.



    Working principle is truck engine driven gearbox, gearbox mounted power take-off drive sprinkler pumps,

    sprinkler pump produces the main driving force, inside the tank of liquid through the pipe to spray out.



    USED WATER TANKER TRUCK SPECIFICATIONS:

    Truck ModelZZ1257N4347A1
    Truck BrandSINOTRUK –HOWO
    Driving StyleLeft Hand Driving
    Tank body volume20M3
    Approaching angle/Departure angle(°)19/26
    Overhang(front/rear) (mm)1500/1739
    Wheel base (mm)4350+1350(mm)
    Max speed(km/h)75
    Maximum gradeability (%)40
    Minimum ground clearance(mm)314
    Minimum turning circle (m)20
    Curb weight(kg)12290
    Loading Weight(kg)25000
    Fuel tanker capacity(L)300
    Fuel consumption(L/km)28L/100 km
    ClutchSingle-plate dry clutch Φ430mm

    Engine Model

    (Steyr technology, made in China)

    Fuel typeDiesel
    Horse Power, max(kw/rpm)336HP
    EmissionEURO II
    ModelWD engine 4 Stroke Direct Injection Diesel
    Bore126mm
    Stroke130mm
    Compression ratio29.8hp/l
    Specific fuel consumption195g/kwh
    TransmissionModelHW19710

    Brake system


    Service brakeDual circuit compressed air brake
    Parking brake

    spring energy, compressed air operating on rear wheels


    Auxiliary brakeEngine exhaust brake

    Steering system


    ModelZF8098 Hydraulic Steering with power assistance.
    Front axleHF7, Steering with double T-cross section beam
    Rear axleST16, Pressed axle housing, central double reduction with differential locks between axles and wheels REAR AXLE RATIO: 5.73
    ColorOptional (White ,Red ,yellow )
    Tyre

    295/80R22.5 x 11pcs

    (with one spare tyre)

    Ground ClearanceGround Clearance of front spray nozzle: 470mm;

    Electrical system


    Battery2X12V/165Ah
    Alternator28V-1500kw
    Starter7.5Kw/24V
    Cab

    HW76, single sleeper with air conditioner

    all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

    336HP Sinotruck Howo 20m3 Used Water Tank Truck

    Bulk Ship Ro-Ro Ship Flat Rack336HP Sinotruck Howo 20m3 Used Water Tank Truck

    336HP Sinotruck Howo 20m3 Used Water Tank Truck

    336HP Sinotruck Howo 20m3 Used Water Tank Truck

    After Refurbishment:

    336HP Sinotruck Howo 20m3 Used Water Tank Truck
